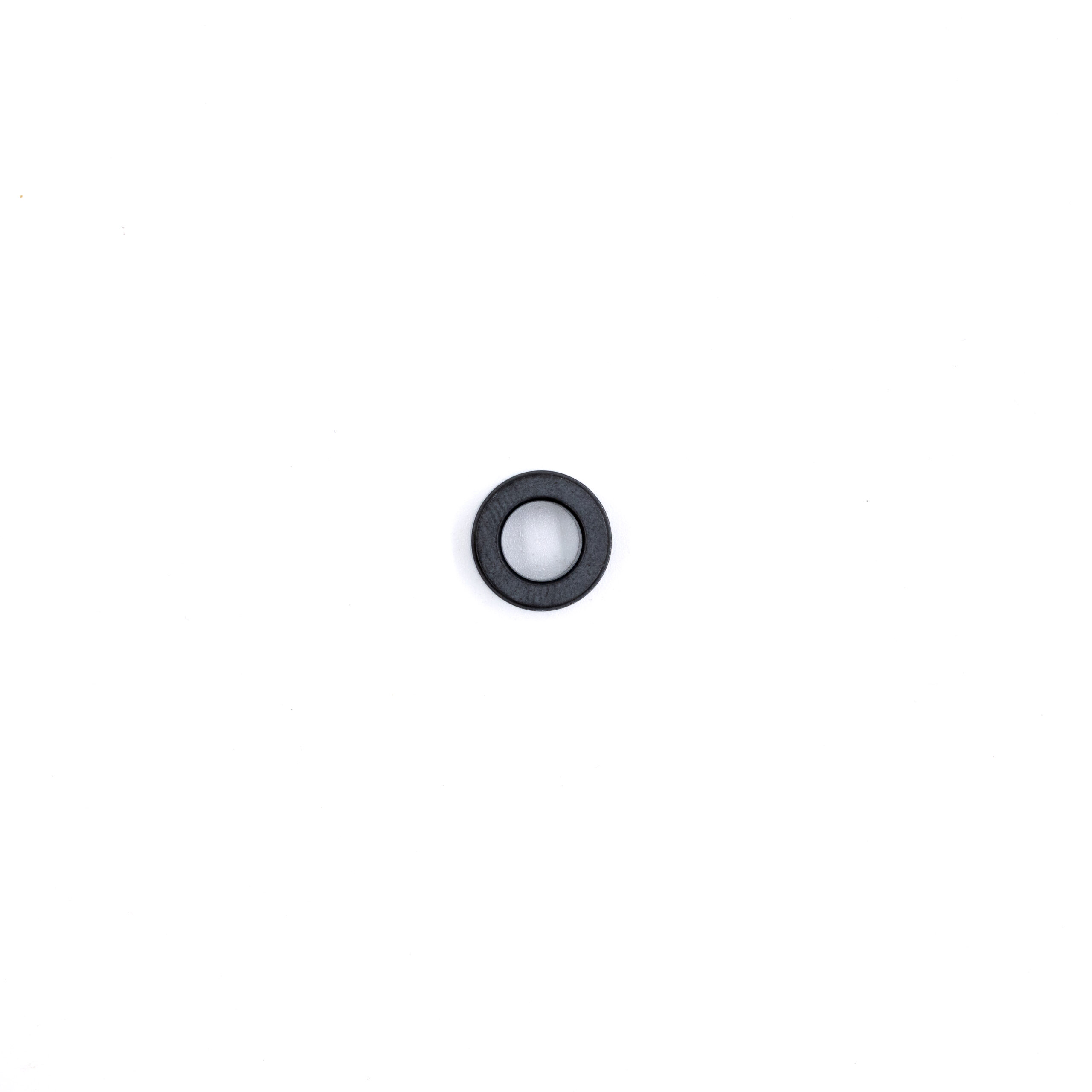

Ferrite Toroid FT50-43
0,59 €
In stock
Description
Ferrite Toroid FT50-43
| AL=440 +/- 20 % uH=(AL*Turns2)/1000 Actual measured
AL using 10 turns #28 wire |
| Temperature Stability (ppm /°C) = 12500 |
| Color Code = shiny black |
| Application Freq Range
Wideband Transformers 5 – 400 MHz Power Transformers 0.5 – 30 MHz RFI Suppression 5 – 500 MHz |
Technical Specifications
| Material | 1V (43) |
|---|---|
| Permeability (µi) | 800 |
| AL (nH) | 440 |
| Outer diameter (metric) | 13 mm |
| Inner diameter (metric) | 7 mm |
| Height (metric) | 4.9 mm |
| Outer diameter (imperial) | 0.5 in |
| Inner diameter (imperial) | 0.28 in |
| Height (imperial) | 0.19 in |
