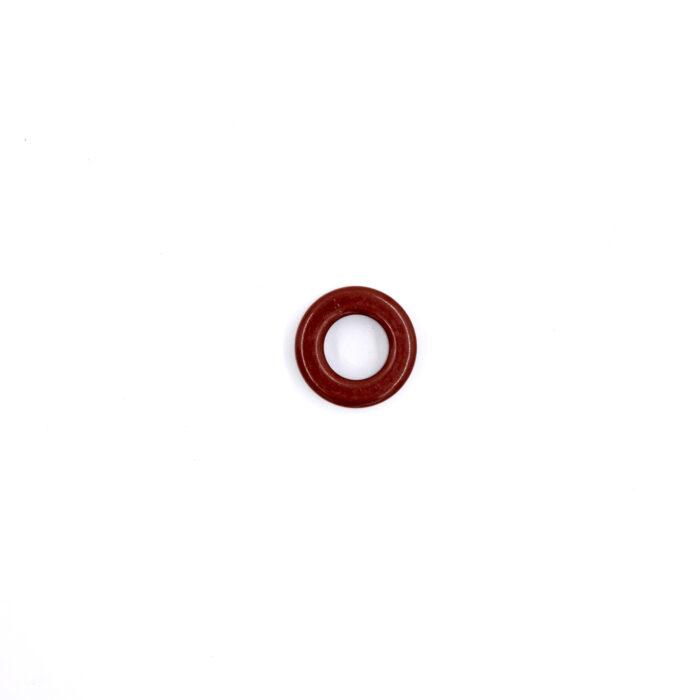

Micrometals – Ferrite core T68-2
1,35 €
In stock
Description
Micrometals – Ferrite core T68-2
| Physical Dimensions
|
| AL=5.7 +/- 5 %Â Â Â Â Â uH=(AL*Turns2)/1000 |
| Temperature Stability (ppm /°C) = 95 |
| Color Code = Red / Clear |
| Optimum Resonant Circuit Range for highest Q and lowest core loss 250 KHz – 10 MHz |
Technical Specifications
| Color code | red/clear |
|---|---|
| Material | 2 |
| Permeability (µi) | 10 |
| AL 100 turns | 57 μΗ |
| Frequency range | 0.25 - 20 MHz |
| Outer diameter (metric) | 17.5 mm |
| Inner diameter (metric) | 9.4 mm |
| Height (metric) | 4.83 mm |
| Outer diameter (imperial) | 0.69 in |
| Inner diameter (imperial) | 0.37 in |
| Height (imperial) | 0.19 in |
Download Datasheet
