10 MHz Distribution Amplifier

Deliver accurate and ultra-low jitter clock signals across multiple devices with this high-performance 10 MHz distribution amplifier, designed for demanding RF, lab or timing applications.

Key features:

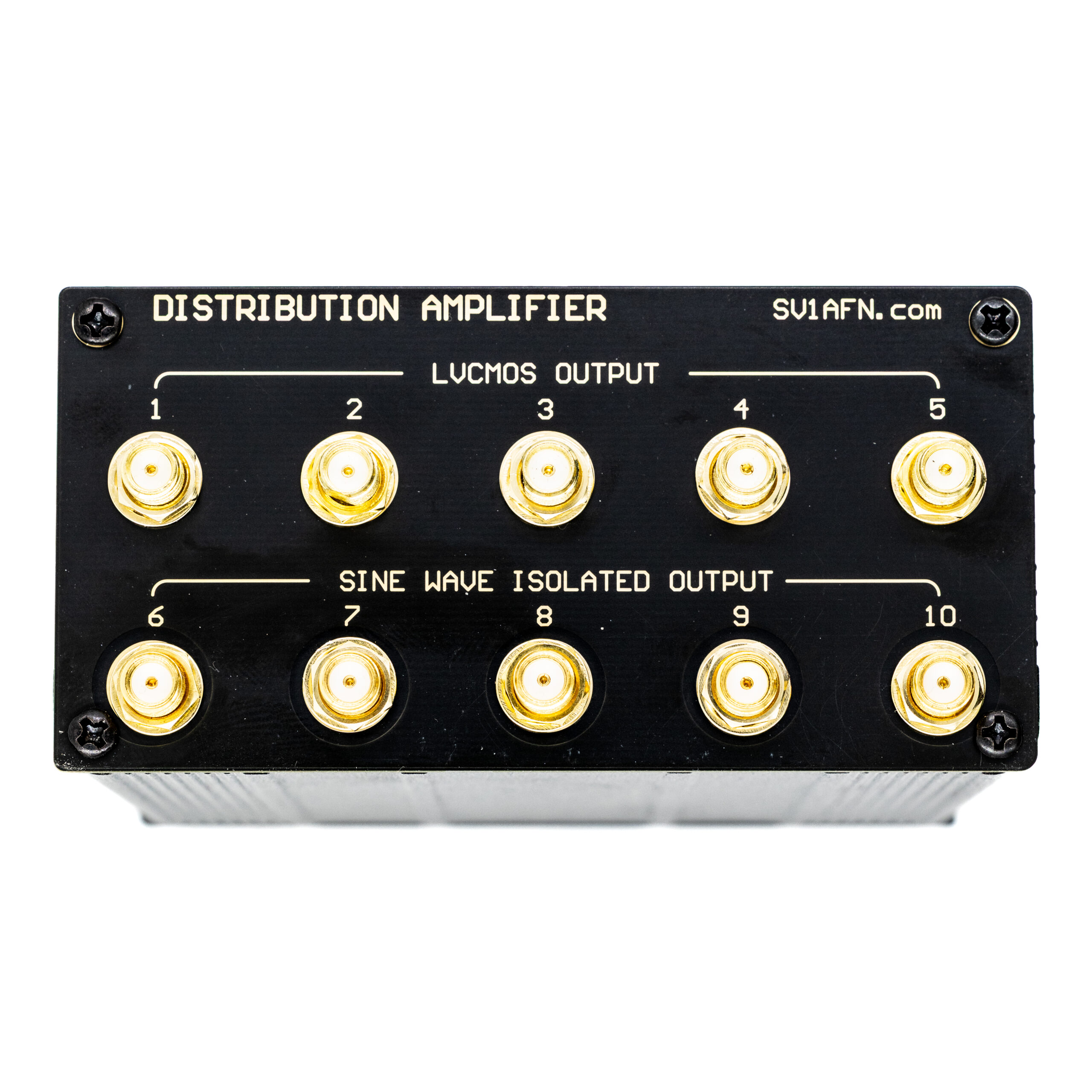

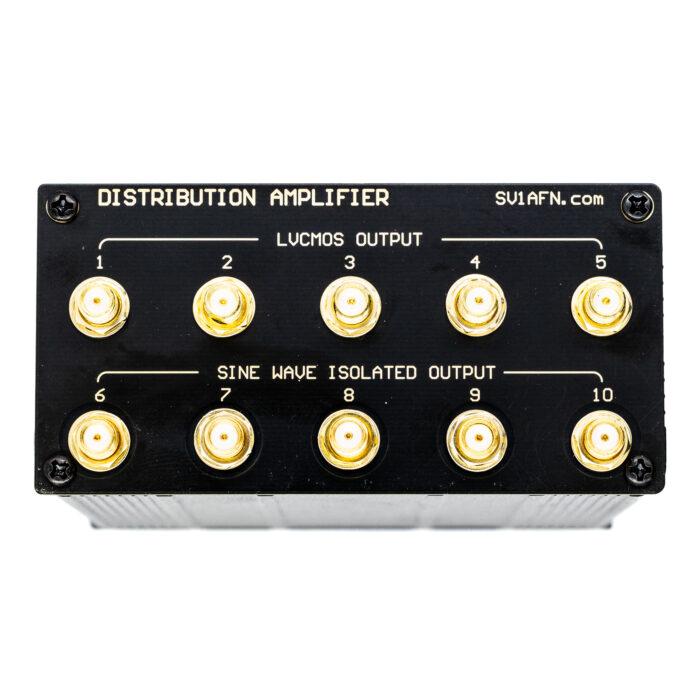

10 Independent Outputs:
5 x LVCMOS 3.3V outputs
5 x Isolated sinewave outputs
All ports are 50Ω terminated

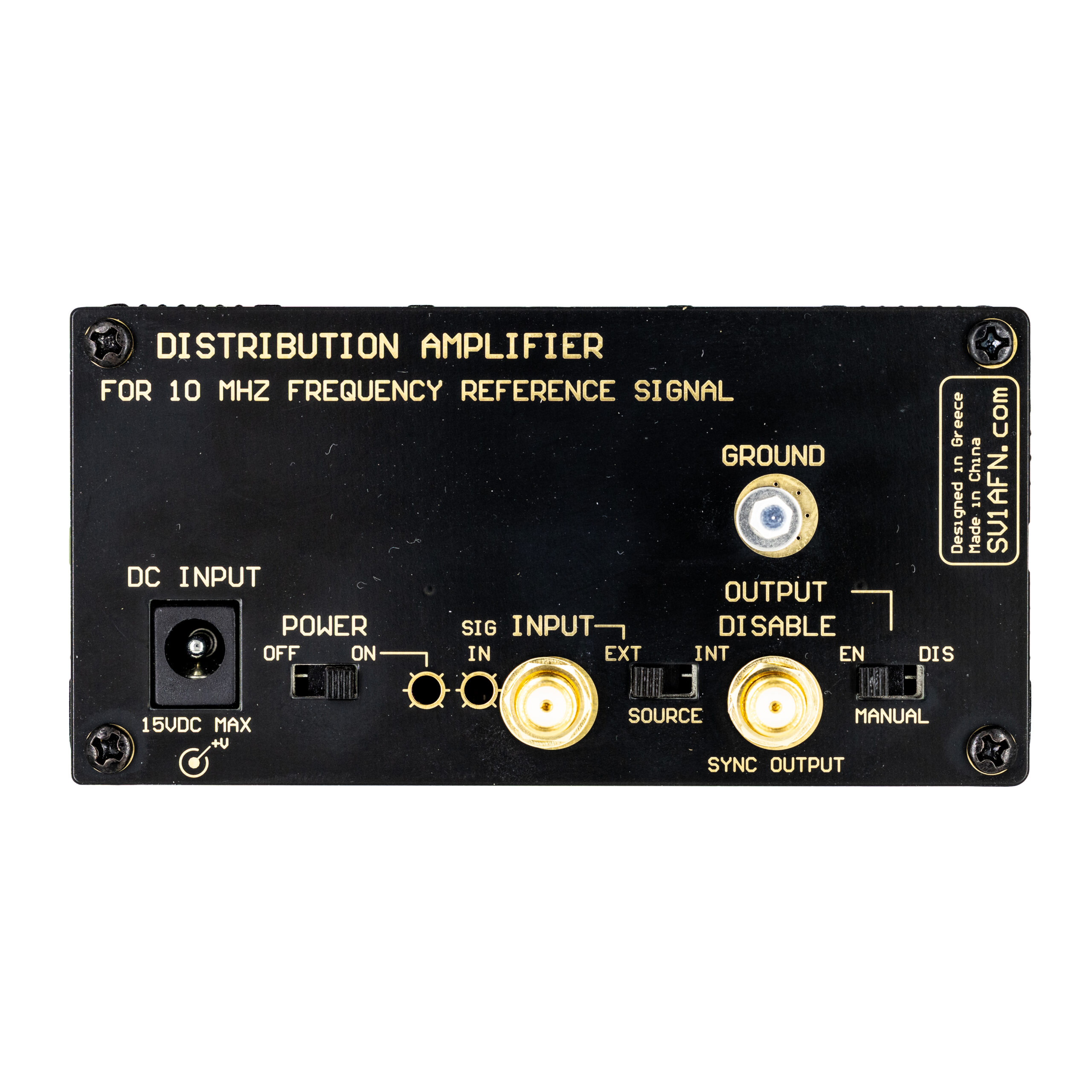

Flexible Input Options:
External reference input via female SMA connector
Accepts signal levels from -18 dBm to +10 dBm
Precision Internal Oscillator:
Integrated 0.28 ppm TCXO, factory-trimmed to 10 MHz
Provides reliable operation even without external reference

Output Control:
Output disable/sync control switch for signal routing flexibility
High performance Clock Buffer:
Based on IDT 5PB110PGG, operating up to 200 MHz
<50 fs additive jitter and <50 ps pin-to-pin skew External Harmonic Attenuation: >60 dB suppression of 2nd harmonic
>73 dB suppression of 3rd harmonic (sinewave outputs)
Enclosure:

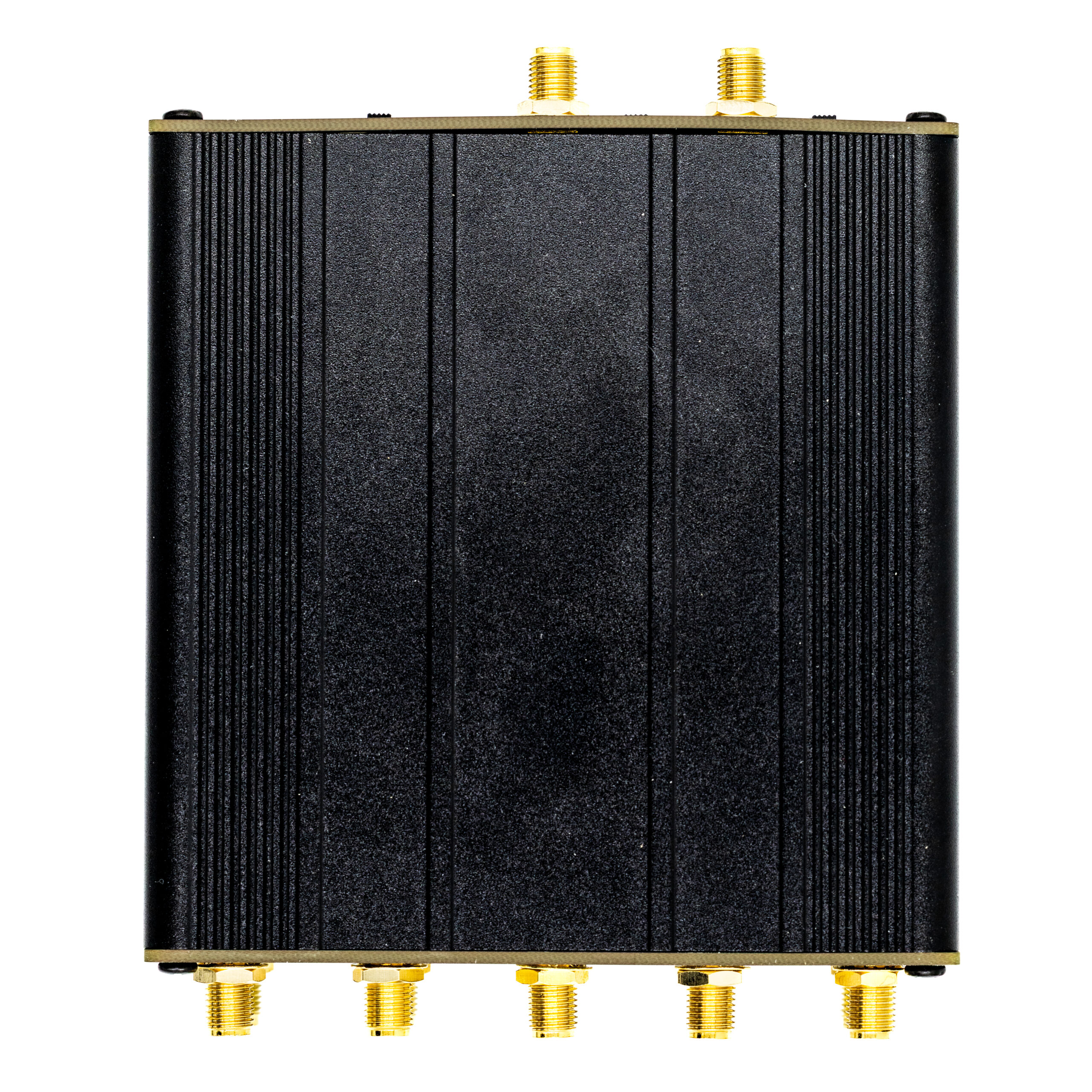

Robust 100×100 mm aluminum case for shielding and durability
