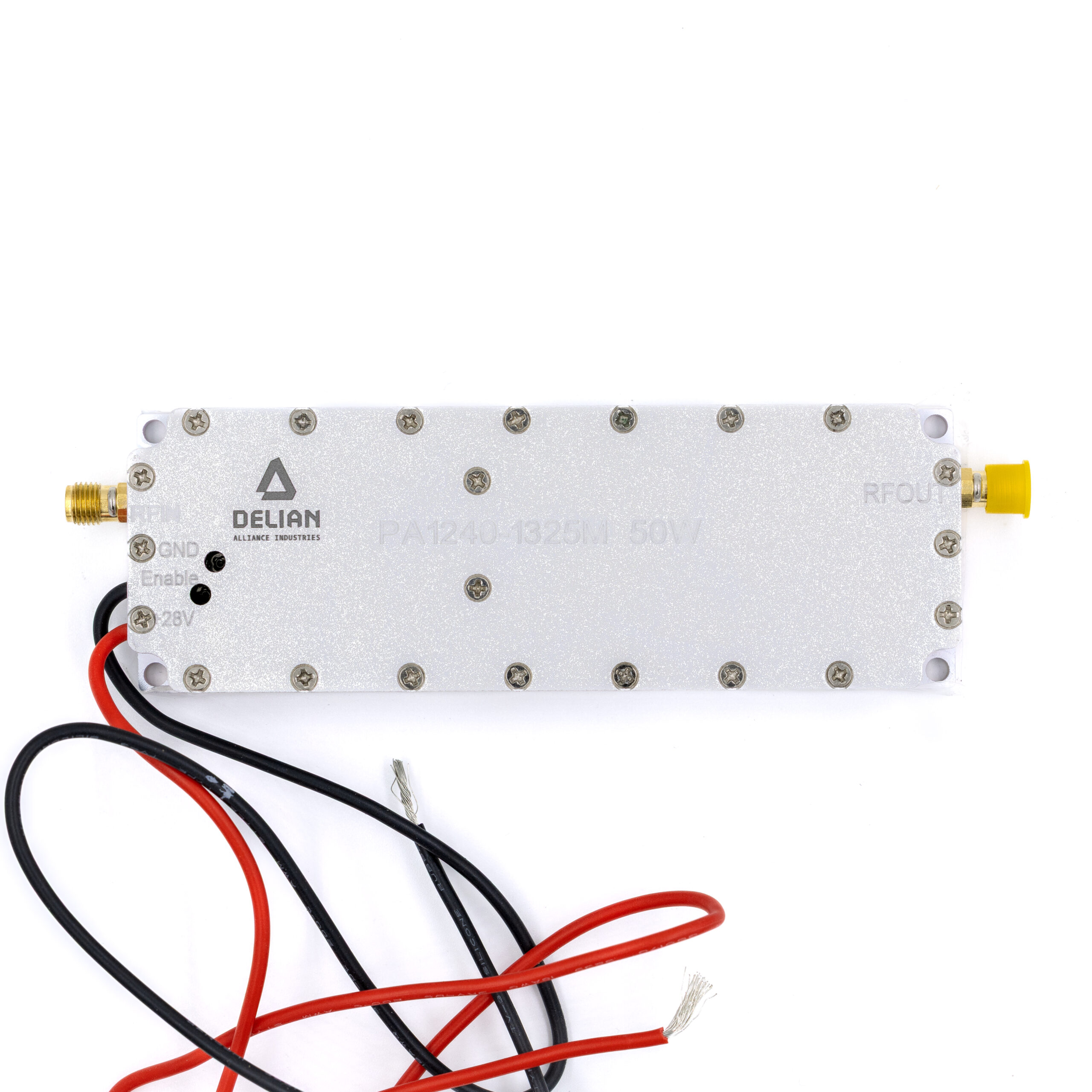

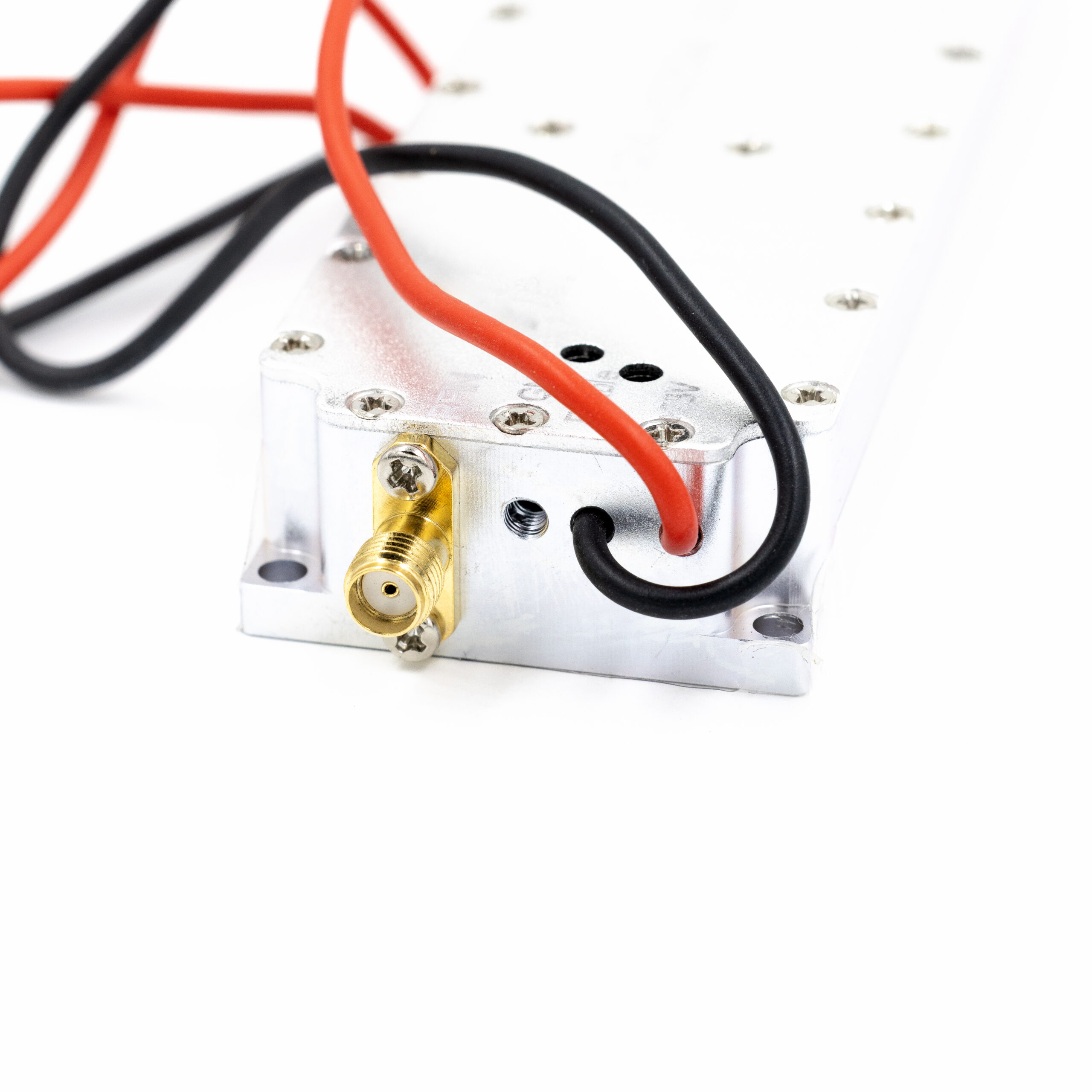

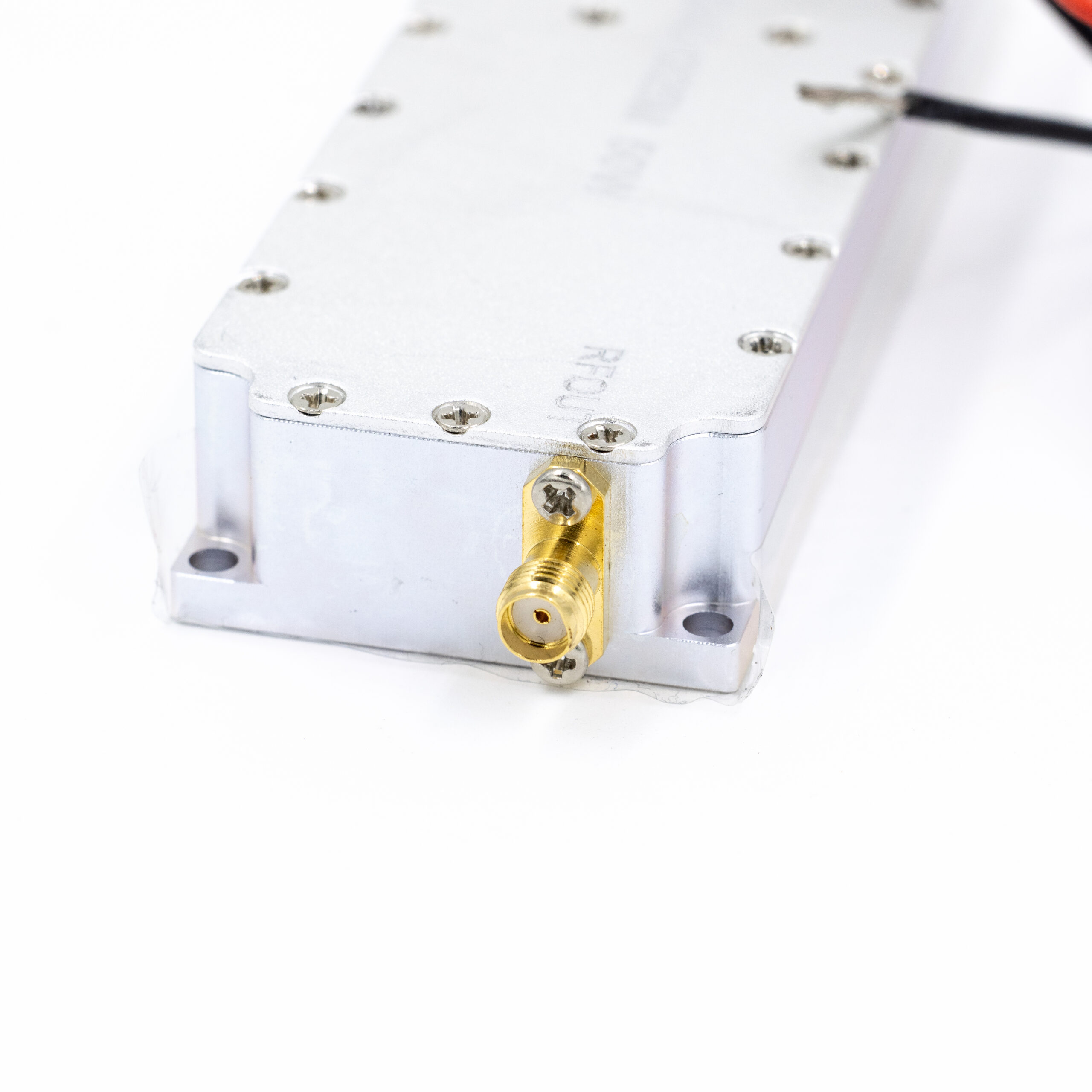

High-Power RF Amplifier 1240–1325 MHz – 50W

This high-power RF amplifier is designed for the 1240 to 1325 MHz frequency range, delivering a robust 50 Watts of continuous RF output power. Ideal for the 23cm amateur radio band, ISM applications, RF research, and long-range wireless communication systems.

Key Features:
Frequency Range: 1240–1325 MHz
Output Power: 50 Watts (CW rated)
Gain: 47±1 dB
Impedance: 50 Ohm (input & output)

Operating voltage: 28V
Enable voltage: 28V

These amplifiers are intended for experimental or professional use.

Users are responsible for proper installation and operation, including correct power, cooling, and signal levels.

Always follow safe electronic handling practices.
