AL=55 +/- 20 % uH=(AL*Turns2)/1000
Actual measured AL using 10 turns #28 wire |
| Temperature Stability (ppm /°C) = 1000 |

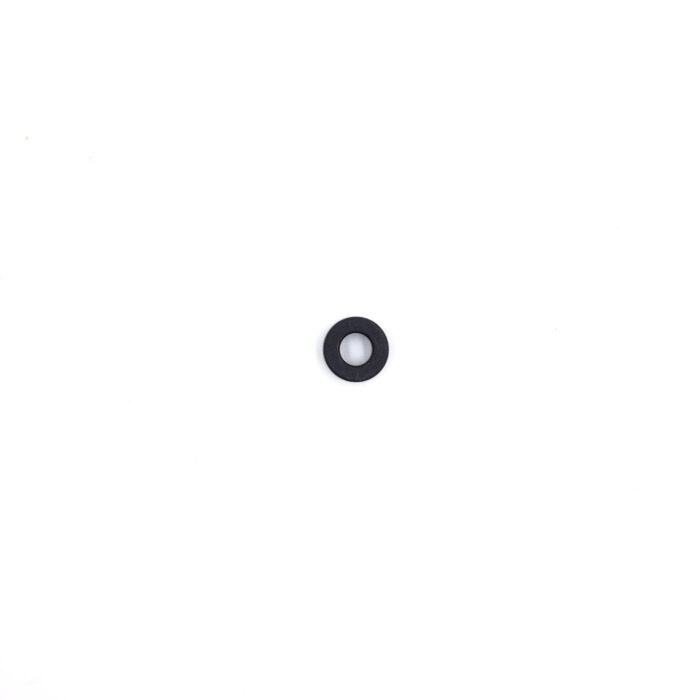

| Color Code = dull black |
Application Freq Range
Wideband Transformers 20 – 500 MHz
High-Q Inductor 0.2 – 10 MHz
RFI Suppression – above 20 MHz |
